automotive electrical connectors oem

Price
US $3.1-3.6/piece

Model
EV-HPC-QC

Unit Price
Order Quantity Unit Price Delivery period
1000 - 3000 US $3.6/piece 15 day
3001 - 5000 US $3.3/piece 20 day
5001 - 10000 US $3.1/piece 25 day

Quantity

Detail Information

Type of signal transmission:Pulse width modulation with modulated Powerline co
Note on the connection method:Crimp connection, cannot be disconnected
Insulation resistance:> 200 MΩ
Coding:4.7 kΩ (between PE and PP
Temperature measurement:DC contacts: 2x PT1000 (DIN EN 60751)
Temperature monitoring:AC contacts: PTC chain (DIN EN 60738-1)
Type of charging current:AC 3-phase
Charging power:26 kW
Charging current:32 A
Charging powe:125 kW

Connector--Xi'an Xinle Electronic Technology Co.,Ltd

Your advantages

• Complete product range

• Uniform, space-saving dimensions for the installation space and the screw connection points of all Phoenix Contact vehicle charging inlets

• Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001

• Integrated interlock during charging

• Manual emergency release of the locking actuator

• Protected and sealed against dirt and water with a high degree of protection

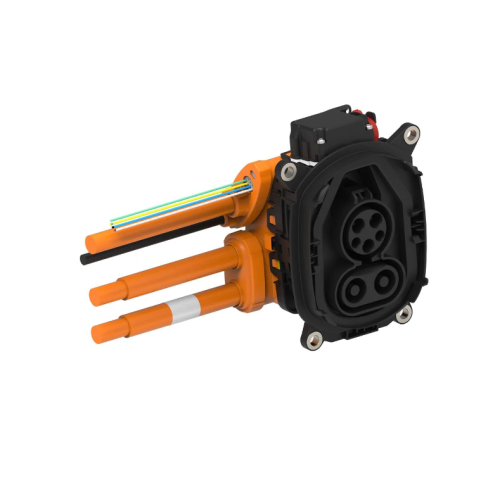

CHARX connect universal, Vehicle charging inlet, for charging with alternating current (AC) and

with direct current (DC), CCS type 2, IEC 62196-2, IEC 62196-3, 125 A / 1000 V (DC), 32 A /

480 V (AC), Single wires, length: 2 m, locking actuator: 12 V, 4-pos., Front and rear mounting,

M6, housing: black, A protective cap is supplied as standard for the DC and AC contacts.

Product description

Vehicle charging inlet for charging with direct current (DC), compatible with type 2 CCS vehicle charging connectors (EVSE), for installation in

electric vehicles (EV).

Commercial data

Item number 1270310

Packing unit 1 pc

Minimum order quantity 1 pc

Sales key EM01

Product key XWCAID

GTIN 4063151440589

Weight per piece (including packing) 4,546 g

Weight per piece (excluding packing) 4,546 g

Customs tariff number 85444290

Country of origin P
